Stainless Steel 316 Hydraulic Fittings

Home > Stainless Steel > Stainless Steel 316 Hydraulic Fittings

Noah Tubefittings is a reliable manufacturer and supplier of Stainless Steel 316 Hydraulic Fittings based in Kinshasa, Congo. They provide top-notch solutions tailored for tough industrial applications. Thanks to their precision engineering, rigorous quality control, and cutting-edge manufacturing techniques, the company offers fittings that guarantee secure, leak-proof hydraulic connections. Known for their corrosion resistance, mechanical strength, and durability, Stainless Steel 316 Hydraulic Fittings from Noah Tubefittings are perfect for high-pressure settings. With a strong foundation of technical expertise and a dedication to customer satisfaction, Noah Tubefittings proudly supports various industries, including oil and gas, chemical processing, marine, automotive, and construction.

DIN 1.4401 Hydraulic Stainless Steel Bulkhead Union Fittings Price in Kananga, Stainless Steel S31600 Hydraulic Banjo Elbow Supplier in Lubumbashi, Stainless Steel 316 Hydraulic Female Stud Coupling Manufacturer in Kinshasa, DIN 1.4401 Stainless Steel Hydraulic Straight Coupling in Mbuji-Mayi, Stainless Steel UNS S31600 Hydraulic Tube Fittings Supplier in Lubumbashi, 316 Stainless Steel Hydraulic Straight Coupling in Kinshasa, Congo, Stainless Steel SUS 316 Hydraulic Male Stud Coupling Price List in Kinshasa, X5CrNiMo17-12-2 Stainless Steel Hydraulic Male Stud Coupling Price in Mbuji-Mayi

Stainless Steel 316 Hydraulic Fittings are made up of chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), along with trace amounts of carbon, manganese, silicon, and iron. This unique blend gives them impressive resistance to chloride corrosion and pitting. On the mechanical side, Stainless Steel 316 boasts high tensile strength, excellent hardness, and outstanding stress rupture performance. These fittings are known for their toughness, weldability, and long-lasting dimensional stability, making them perfect for hydraulic systems that face high pressure, aggressive fluids, or tough environments.

Stainless Steel 316 Hydraulic Fittings Specifications

DESIGN STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	SS 316 ,SS 316L
MATERIAL	SS 316 ,SS 316L
SERIES	LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE
WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
CONNECTIONS	TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TO ADJUSTBALE STANDPIPE
CONNECTIONS	WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL
BODY TYPE	FORGED, BAR STOCK
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH
TEMPERATURE	STAINLESS STEEL 316 – (-60C TO 400C)
APPLICATIONS & INDUSTRIES	CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT
MATERIAL DESIGNATOR	STAINLESS STEEL – ASTM A 276 , ASTM 182

Stainless Steel 316 Hydraulic Fittings Chemical Composition

Grade		Mn	C	S	Mo	N	Si	P	Cr	Ni
316	Minimum	–	–	–	2.00	–	–	0	16.0	10.0
316	Maximum	2.0	0.08	0.03	3.00	0.10	0.75	0.045	18.0	14.0
316H	Minimum	0.04	0.04	–	2.00	–	0	–	16.0	10.0
316H	Maximum	0.10	0.10	0.03	3.00	–	0.75	0.045	18.0	14.0

Stainless Steel 316 Hydraulic Fittings Mechanical Properties

Grade	Elong (% in 50mm) min	Yield Str 0.2% Proof (MPa) min	Tensile Str (MPa) min	Hardness
Grade	Elong (% in 50mm) min	Yield Str 0.2% Proof (MPa) min	Tensile Str (MPa) min	Rockwell B (HR B) max	Brinell (HB) max
316	40	205	515	95	217
316H	40	205	515	95	217

Stainless Steel 316 Hydraulic Fittings Equivalent

Grade	British		Euronorm		UNS No	SS	JIS
Grade	European Standards	British Standards	DIN No	Name	UNS No	SS	JIS
316	58H, 58J	316S31	1.4401	X5CrNiMo17-12-2	S31600	2347	SUS 316
316H	–	316S51	–	–	S31609	–	–

Top Stainless Steel 316 Hydraulic Fittings Manufacturing Company in Kinshasa

At Noah Tube Fittings, we are the largest supplier, manufacturer, and exporter of Stainless Steel 316 Hydraulic Fittings in Kinshasa, Congo. Our advanced manufacturing facilities, strategically positioned in the Congo, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Stainless Steel Hydraulic Fittings

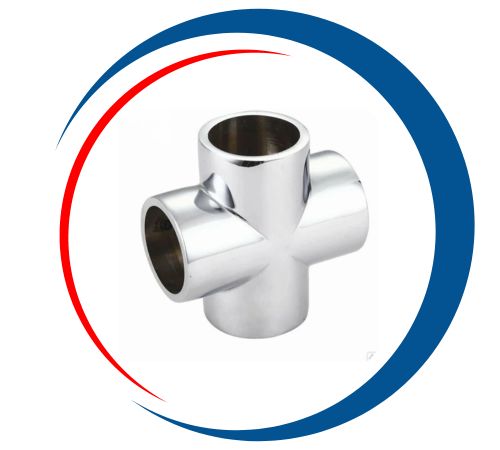

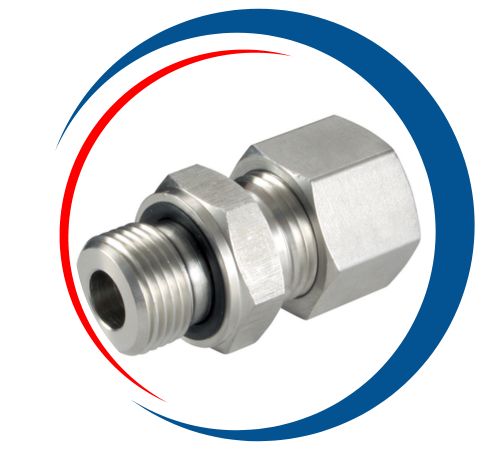

SS UNS S31600 Male Stud Coupling in Kinshasa, Stainless Steel 316 Equal Cross Hydraulic Fittings Supplier And Manufacturer in Mbuji-Mayi, Hydraulic Stainless Steel DIN 1.4401 Swivel Fittings Manufacturer in Lubumbashi, SS SUS 316 Hydraulic Equal Elbow Fittings Manufacturer in Kananga, X5CrNiMo17-12-2 Stainless Steel Swivel Fittings Supplier in Kananga, 316 SS Equal Cross Hydraulic Fittings Supplier in Kisangani

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Stainless Steel 316 Hydraulic Fittings in Kinshasa, Congo

Noah Tube Fittings is a leading supplier and stockist of premium Stainless Steel 316 Hydraulic Fittings in Kinshasa, Congo. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Stainless Steel 316 Hydraulic Fittings Uses

Stainless Steel 316 Hydraulic Fittings are a go-to choice in various industries that need reliable and efficient fluid flow systems. These fittings play a crucial role in hydraulic machinery, pressure control systems, instrumentation lines, and automation equipment. Sectors like oil and gas, petrochemical, food processing, pharmaceuticals, and marine heavily depend on them because of their impressive corrosion resistance and durability. You’ll also find these fittings in offshore operations, desalination plants, wastewater treatment facilities, power generation, and aerospace systems. Their exceptional reliability and ability to handle extreme temperatures and pressures make them perfect for complex hydraulic networks and critical applications.
