Monel Tube Fittings

Home > Monel > Monel Tube Fittings

Noah Tubefittings is your go-to manufacturer and supplier of top-notch Monel Tube Fittings right here in Kinshasa, Congo. We cater to a variety of industrial sectors with our precision-engineered solutions. Known for their durability, accuracy, and resistance to corrosion, our Monel Tube Fittings are perfect for those tough environments where strength and reliability are a must. We take pride in ensuring our products perform at their best by adhering to strict quality standards, utilizing advanced manufacturing techniques, and delivering on time. Our fittings come in a range of sizes, configurations, and pressure ratings to suit all sorts of application needs. At Noah Tubefittings, we’re dedicated to offering cost-effective, durable, and long-lasting Monel Tube Fittings that are essential for critical industrial operations.

Monel Tube Fittings Price in Kinshasa, Monel Instrumentation Fittings Supplier in Lubumbashi, Monel Alloy Double Ferrule Fittings Manufacturer in Kananga, Monel Alloy Branch Tees Price in Mbuji-Mayi, Monel Female Elbow Dealer in Lubumbashi, Monel Hydraulic Tube Fittings Supplier in Kisangani, Monel Blanking Plug Supplier And Manufacturer in Kisangani, Monel Union Tee In Kinshasa, Congo.

Monel Tube Fittings are made up of a high nickel content, ranging from 63% to 70%, mixed with copper, which makes up about 20% to 29%. They also contain trace amounts of manganese, carbon, silicon, and iron. This nickel-copper alloy is known for its impressive mechanical properties, such as high tensile strength and outstanding resistance to corrosion, making it perform exceptionally well in acidic, alkaline, and seawater environments. Monel tube fittings are not only tough but also have good thermal conductivity and high impact strength, even in extreme temperatures, whether hot or cold. Their remarkable ability to resist oxidation, pitting, and stress-corrosion cracking makes them perfect for challenging operating conditions.

Monel Tube Fittings Specifications

Monel Tube Fittings specification (ASTM / ASME)	ASTM B366/ ASME SB366
Working Pressure	Up to 6,000psi (based on severity of application)
Two-Ferrule Tube Fittings	Pressure Ratings : Up to 11 000 psig (760 bar)
Medium-Pressure, Gaugeable	Pressure Ratings: Up to 20 000 psig (1378 bar) Temperature Ratings: Up to 1000°F (537°C)
High-Pressure Monel Tube Fittings	Pressure Ratings: Up to 60 000 psig (4134 bar) Temperature Ratings: Up to 1000°F (537°C) Materials of construction: 316 Stainless Steel Tube Fittings, Alloy 2507, Monel 400 Tube fittings
Monel Tube Fittings Special sizes	22mm Monel tube fittings 25mm Monel 400 tube fittings 32mm Monel K500 tube fittings 50mm Monel Ferrule tube fittings
End Connections	Types: NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Types	Unions, NPT, medium-pressure cone and thread adapters, male SAE/MS, reducers, port connectors, tube adapters, caps, plugs
Monel Ferrule Tube Fittings Sizes	1/16 to 2 in.; 2 to 50 mm 1/4, 3/8, 1/2, 9/16, 3/4 in.; 6, 10, 12 mm
Specification	Items Made from Hex – ASTM B574 ; Items made from Round Bar- ASTM B564
Brand Name	Monel Tube fittings
Tube Size	1/16”OD to 2”OD, 2mm OD to 50mm OD
Threads	NPT (ANSI B1.20.1), BSP, BSPT (ISO thread configurations), UNF, SAE etc.
PTFE Standards	ASTM D1710, ASTM D3294
Applicable Temperature	150-400°C
Monel Tube Fittings Packing Details	As your detail request Normally carton size – 211614CM/312116CM/364550CM Normally wooden box size – 382717CM Normally 1piece/opp, 10-20pcs/carton

Equivalent Grades of Monel Tube Fittings

STANDARD	AFNOR	UNS	BS	WERKSTOFF NR.	GOST	JIS	EN
Monel K500	–	N05500	–	2.4375	–	–	–
Monel 400	NU-30M	N04400	NA 13	2.4360	МНЖМц 28-2,5-1,5	NW 4400	NiCu30Fe

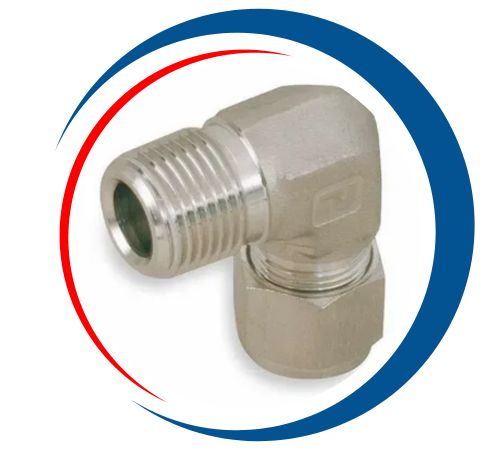

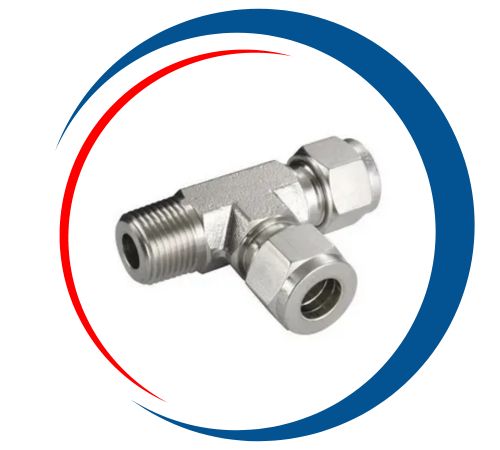

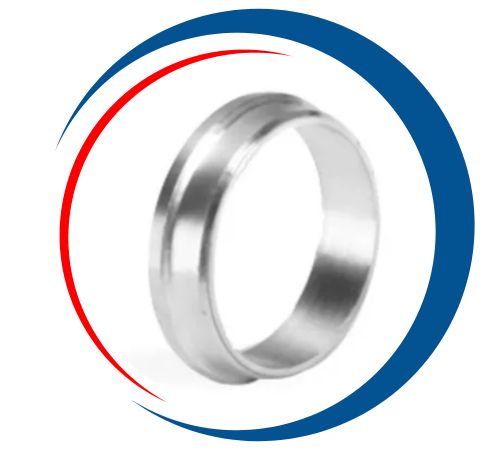

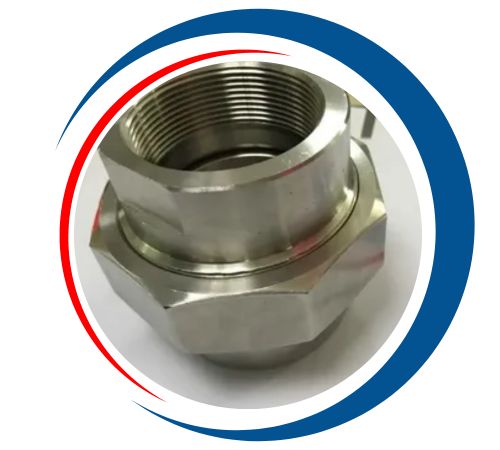

Types of Monel Tube Fittings

Dimension of Monel Tube Fittings

OD	OD Actual	Thread Designation – Nominal Size	Thread per inch
(fraction inch)	(inches)	(inches)	NPT	BSP
5/16	0.3125	1/16	27	28
13/32	0.405	1/8	27	28
35/64	0.540	1/4	18	19
43/64	0.675	3/8	18	19
27/32	0.840	1/2	14	14
1-3/64	1.050	3/4	14	14
1-5/16	1.315	1	11-1/2	11
1-21/32	1.660	1-1/4	11-1/2	11
1-29/32	1.900	1-1/2	11-1/2	11
2-3/8	2.375	2	8	11
2-7/8	2.875	2-1/2	8	11
3-1/2	3.5	3	8	11
4	4.0	3-1/2	8	11
4-1/2	4.5	4	8	11
5-5/8	5.563	5	8	11
6-5/8	6.718	6	8	11

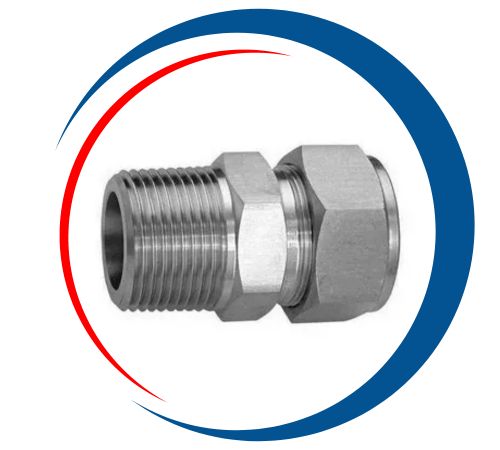

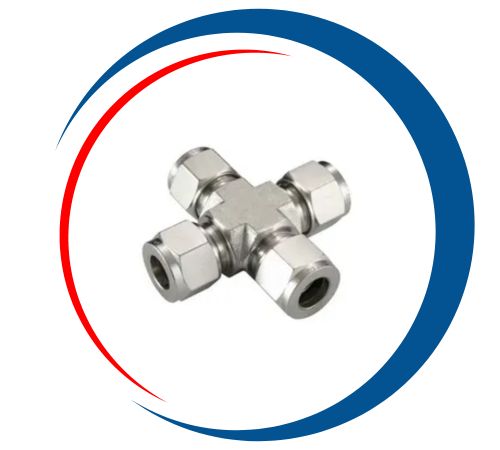

Monel Male Bulkhead Connector Manufacturer in Kinshasa, Monel Hydraulic Fittings Exporter in Lubumbashi, Monel Single Ferrule Compression Fittings Supplier in Kananga, Monel Flared Tube Fittings Supplier in Mbuji-Mayi, Monel Union Cross In Kananga, Monel Instrumentation Fittings In Mbuji-Mayi, Monel Bulkhead Union Price List in Kisangani, Monel Ferrule Tube Fittings Manufacturer in Kinshasa, Monel Alloy Compression Tube Fittings Exporter in Lubumbashi, Congo.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Monel Tube Fittings in Kinshasa, Congo

At Noah Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Monel Tube Fittings in Kinshasa, Congo. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Congo, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

Monel Tube Fittings Uses

Monel Tube Fittings are a go-to choice in industries that demand top-notch corrosion resistance and durability, particularly in marine, offshore, and saltwater environments. You’ll often find them in chemical processing plants, oil and gas systems, heat exchangers, pressure vessels, and petrochemical facilities, thanks to their impressive ability to handle corrosive chemicals and extreme temperatures. These fittings also play a crucial role in aerospace, power generation, and instrumentation systems where leak-proof and high-pressure connections are essential. Their strength, stability, and reliability make them perfect for applications involving seawater piping, valves, pump shafts, desalination equipment, and refinery operations, ensuring they deliver long-lasting performance and operational efficiency.
