Hydraulic Male Stud Coupling

Home > Hydraulic Male Stud Coupling

Noah Tubefittings is a well-respected manufacturer and supplier located in Kinshasa, Congo, specializing in top-notch **Hydraulic Male Stud Couplings** that are built for leak-proof and durable performance in high-pressure hydraulic systems. These couplings are expertly designed to securely connect hydraulic lines, ensuring efficient fluid transmission and reliable system operation. Crafted with precision from high-quality materials, Noah Tubefittings promises exceptional strength, corrosion resistance, and precise dimensions. Their Hydraulic Male Stud Couplings are known for their consistent performance, straightforward installation, and long-lasting service life, even in tough industrial settings.

Hydraulic Male Stud Coupling Supplier in Kinshasa, C.S Male Stud Coupling Price List in Lubumbashi, Male Stud Coupling with ED Manufacturer in Kananga, SS Male Stud Coupling In Mbuji-Mayi, Hydraulic Weld Connector Exporter in Lubumbashi, SS Weld Connector With Weld Nipple and O Ring Manufacturer in Kisangani, Hydraulic Male Stud Coupling In Kinshasa, Congo.

Typically made from stainless steel, carbon steel, or alloy steel, Hydraulic Male Stud Couplings offer impressive mechanical strength along with excellent resistance to corrosion and wear. They boast a tensile strength that ranges from 520 MPa to 800 MPa, making them durable enough to handle high-pressure and high-vibration environments. These couplings maintain their structural integrity and provide a tight seal, even when faced with temperature changes, hydraulic shocks, or mechanical stress.

Hydraulic Male Stud Coupling Specifications

STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20
SERIES	LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE
WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
CONNECTIONS	TUBE TO MALE THREAD , WELD NIPPLE TO MALE THREAD

BODY TYPE	BAR STOCK
ACCESSORIES	O-RING, DOWTY SEAL , COPPER WASHER , ED SEAL, CUTTING RING , NUT
O-RING & SEALS	NBR ( -35C TO 100 C ) VITON (-25C TO 200 C) , PTFE – (-60C TO 240)
SURFACE	CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED,
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH
TEMPERATURE	STEEL – (-40* C TO 120C) ,STAINLESS STEEL – (-60C TO 400C) BRASS – (-60C TO 175*C)
APPLICATIONS & INDUSTRIES	CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT
MATERIAL DESIGNATOR	STAINLESS STEEL – ASTM A 276 , ASTM 182
	STEEL – ASTM 108/A105, JIS G4051 S20C, S45C,/G3201 SF440A.
	BRASS – ASTM B16 UNS C36000 , ASTM B282 ALLOY 37700 , JIS H3250 C3604 , C3771 , JIS H3250 C3771.

Top Hydraulic Male Stud Coupling Manufacturing Company in Kinshasa

At Noah Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Male Stud Coupling in Kinshasa, Congo. Our advanced manufacturing facilities, strategically positioned in the Congo, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

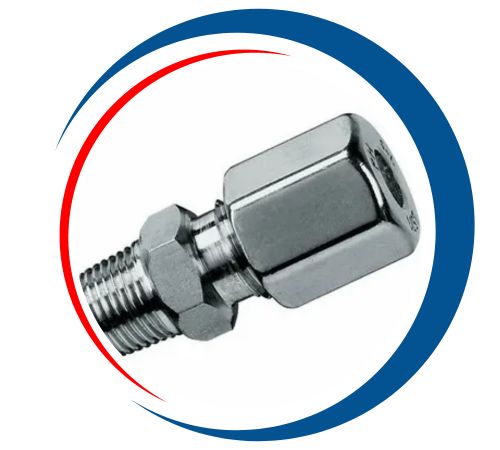

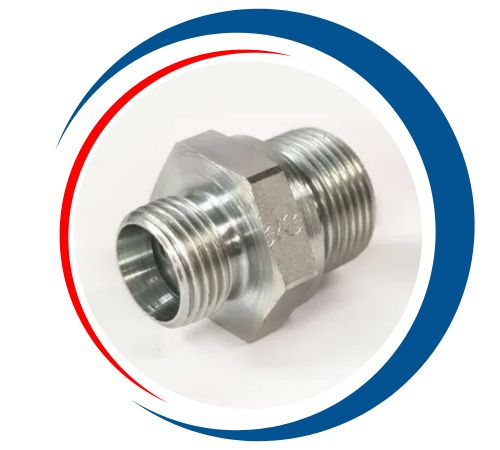

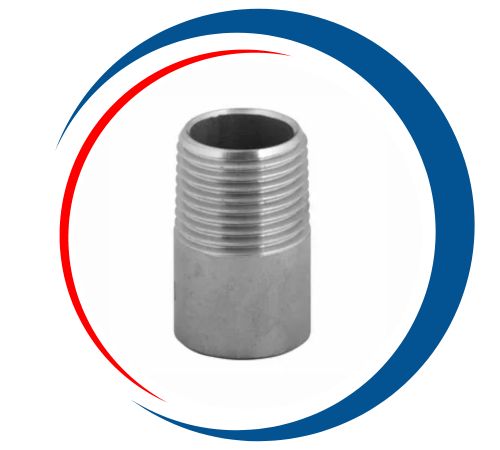

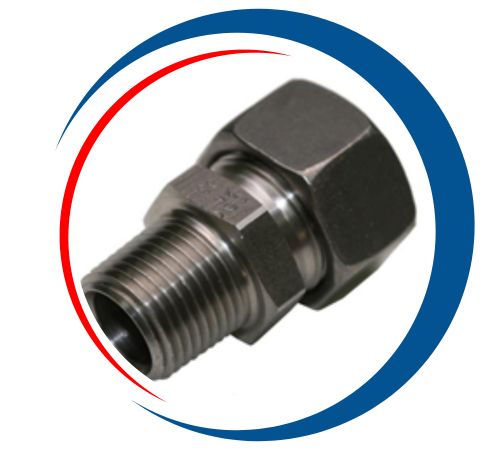

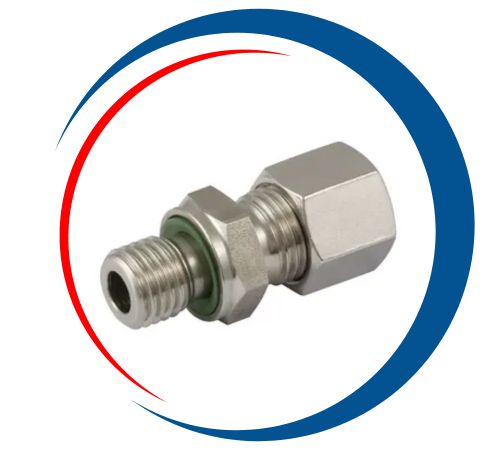

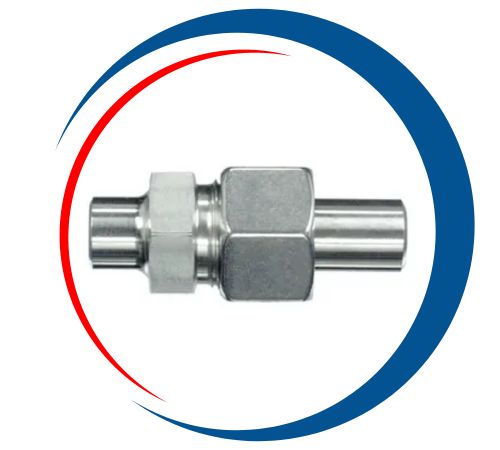

Types of Hydraulic Male Stud Coupling

Dimension of Hydraulic Male Stud Coupling

DIAM D	C	E	F	F1	DIM G	H	HMAXI	H1	BODY	SEALING WASHER	MINIMUM WORKING TEMPERATURE	MAXIMUM WORKING TEMPERATURE
4 MM	G1/8	6,5 MM	13 MM	10 MM	16,5 MM	8 MM	brass	nitrile	-40 CE	100 CE	0,015 KG	10
4 MM	G1/8	5,5 MM	13 MM	10 MM	14 MM	17,5 MM	9 MM	brass	nitrile	-40 CE	100 CE	0,016 KG
4 MM	M5x0,8	5 MM	10 MM	10 MM	16,5 MM	8 MM	brass	nitrile	-40 CE	100 CE	0,01 KG	10
4 MM	M7x1	6,5 MM	10 MM	10 MM	16,5 MM	7,5 MM	brass	nitrile	-40 CE	100 CE	0,013 KG	10
4 MM	M8x1	6,5 MM	11 MM	10 MM	16,5 MM	7,5 MM	brass	nitrile	-40 CE	100 CE	0,013 KG	10
5 MM	G1/8	6,5 MM	13 MM	12 MM	17,5 MM	8,5 MM	brass	nitrile	-40 CE	100 CE	0,018 KG	10
5 MM	G1/8	5,5 MM	13 MM	12 MM	14 MM	18,5 MM	9,5 MM	brass	nitrile	-40 CE	100 CE	0,027 KG
5 MM	M8x1	6,5 MM	11 MM	12 MM	17,5 MM	8 MM	brass	nitrile	-40 CE	100 CE	0,015 KG	10
5 MM	M10x1	6,5 MM	14 MM	12 MM	17,5 MM	8,5 MM	brass	nitrile	-40 CE	100 CE	0,02 KG	10
6 MM	G1/8	6,5 MM	13 MM	13 MM	18 MM	8,5 MM	brass	nitrile	-40 CE	100 CE

Hydraulic Male Stud Coupling Exporter in Kinshasa, C.S Male Stud Coupling Price List in Lubumbashi, Male Stud Coupling with ED Manufacturer in Kananga, Hydraulic Male Stud Coupling In Mbuji-Mayi, Male Stud Coupling with ED Supplier in Lubumbashi, SS Male Stud Coupling Manufacturer in Kisangani, Hydraulic Male Stud Coupling In Kinshasa, Congo.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Hydraulic Male Stud Coupling Supplier in Kinshasa, Congo

You’ll find Hydraulic Male Stud Couplings used across various industries, including oil and gas, petrochemical, power generation, marine, and heavy machinery. They’re perfect for connecting pipes, tubes, and hoses in hydraulic and pneumatic systems, ensuring secure and dependable joints. Designed for high-pressure fluid transfer applications, these couplings guarantee smooth and efficient operation. Their strength, precision engineering, and corrosion resistance make them the go-to choice for critical hydraulic installations and industrial machinery systems.

Hydraulic Male Stud Coupling Uses

Hydraulic Male Stud Couplings are widely used in hydraulic systems for connecting pipes or hoses to components like pumps, cylinders, and valves. They ensure a secure, leak-free connection under high pressure, making them ideal for industrial machinery, construction equipment, and automotive systems. These couplings facilitate efficient fluid flow while minimizing vibration and ensuring easy assembly and disassembly. Their robust design allows for reliable performance in harsh environments, including oil and gas, agriculture, mining, and marine industries, where durability and reliability are crucial.
